Especificaciones Tecnicas
Fabricante:
Asus
Modelo:

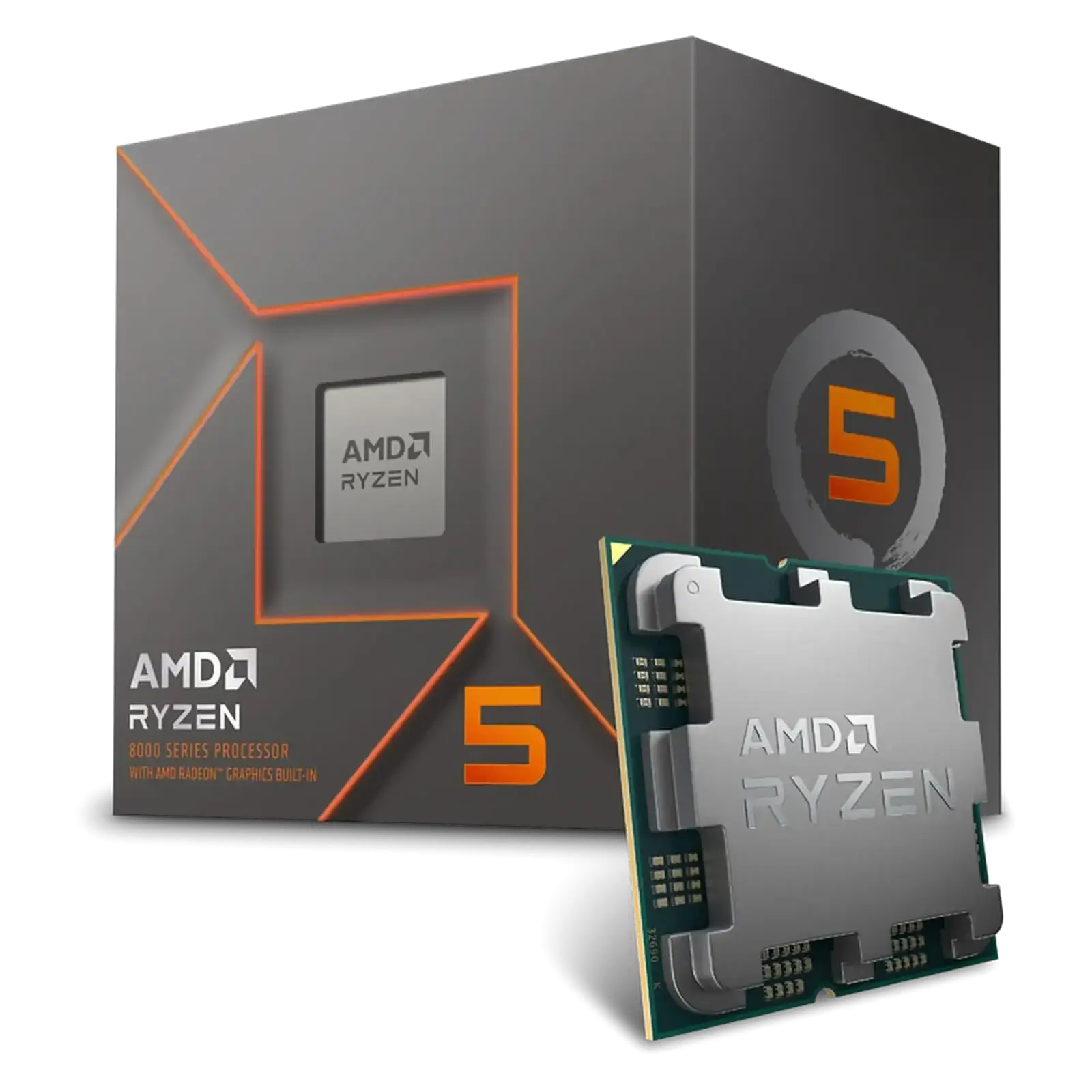

PRIME A620M-K / Ryzen 5 8500G
CPU
Socket:
AMD Socket AM5
Fundición:
TSMC
Tamaño del proceso:
4 nm
Transistores:
20,900 million
Tamaño de la matriz:
137 mm²
Encapsulado:
FC-LGA1718
tJMax:
95°C
Procesador
Mercado:
Mobile
Estado de producción:
Active
Fecha de lanzamiento:
Jan 8th, 2024
Disponibilidad al por menor:
Jan 31st, 2024
Precio de lanzamiento:
$179
# de pieza:
100-000001491
Refrigerador incluido:
Wraith Stealth
Core Config
# de núcleos:
6
# de hilos:
12
Núcleos híbridos:
2 + 4
SMP # CPUs:
1
Gráficos integrados:
Radeon 740M
Caché
Caché L1:
64 KB (per core)
Caché L2:
1 MB (per core)
Caché L3:
16 MB (shared)
Rendimiento
Frecuencia:
3.5 GHz
Base P-Core:
4.1 GHz
Turbo Clock:
up to 5 GHz
Frecuencia E-Core:
3.2 GHz, up to 3.7 GHz
Reloj base:
100 MHz
Multiplicador:
35.0x
Multiplicador desbloqueado:
No
TDP:
65 W
TDP configurable:
45 W
PPT:
61-88 W
Arquitectura
Nombre en clave:
Phoenix2
Generación:
Ryzen 5 (Zen 4 (Phoenix))
Soporte de memoria:
DDR5
Velocidad nominal:
5200 MT/s
Bus de memoria:
Dual-channel
Memoria ECC:
Yes
PCI-Express:
Gen 4, 14 Lanes (CPU only)
Chipsets:
X670E, X670, B650E, B650, A620
Features:
• MMX, • SSE, • SSE2, • SSE3, • SSSE3, • SSE4A, • SSE4.1, • SSE4.2, • AES, • AVX, • AVX2, • AVX-512, • BMI1, • BMI2, • SHA, • F16C, • FMA3, • NX-Bit, • AMD64, • EVP, • AMD-V, • SMAP, • SMEP, • SMT, • Precision Boost 2
Tarjeta Madre
Model
PRIME A620M-K
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Supports up to AMD 120W CPU
Chipset
AMD A620 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x VGA port
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD A620 Chipset
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site.
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to the manufacturer site for the list of supported peripherals.
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor
8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
