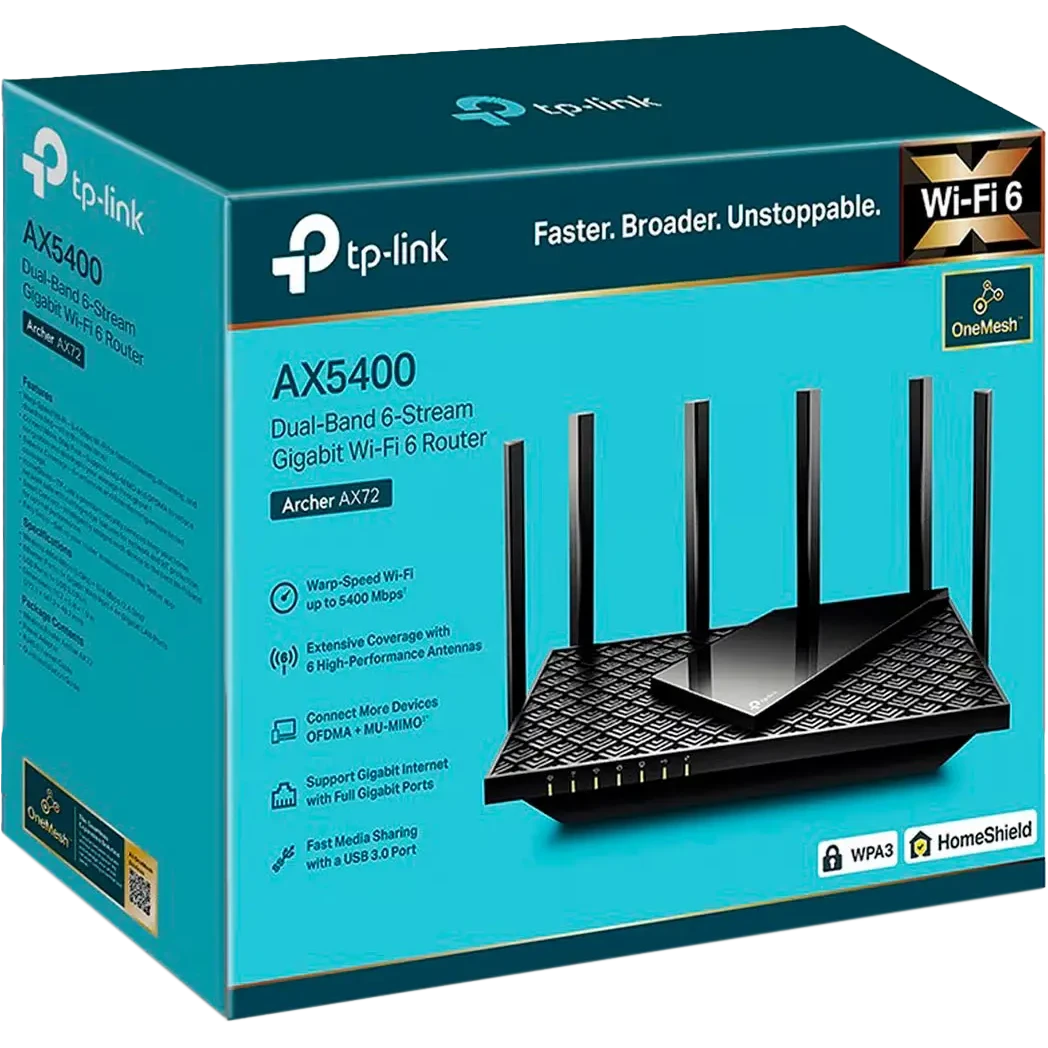

Router TP-LINK Archer AX72 AX5400

Especificaciones Tecnicas

Fabricante:

TP-LINK

Modelo:

Archer AX72

WIRELESS

Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX5400
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity

High
Dual-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth

Working Modes

Router Mode
Access Point Mode
SECURITY

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server

VPN Client

• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client

WiFi Encryption

WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor

1 GHz Dual-Core CPU

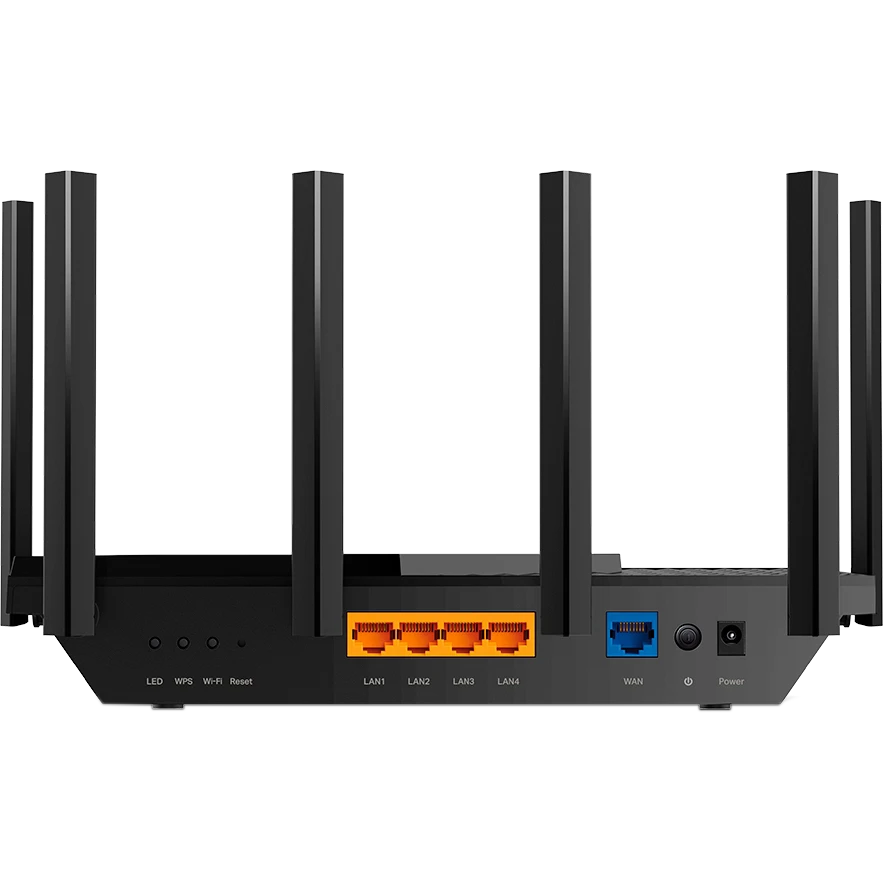

Ethernet Ports

1× Gigabit WAN Port
4× Gigabit LAN Ports

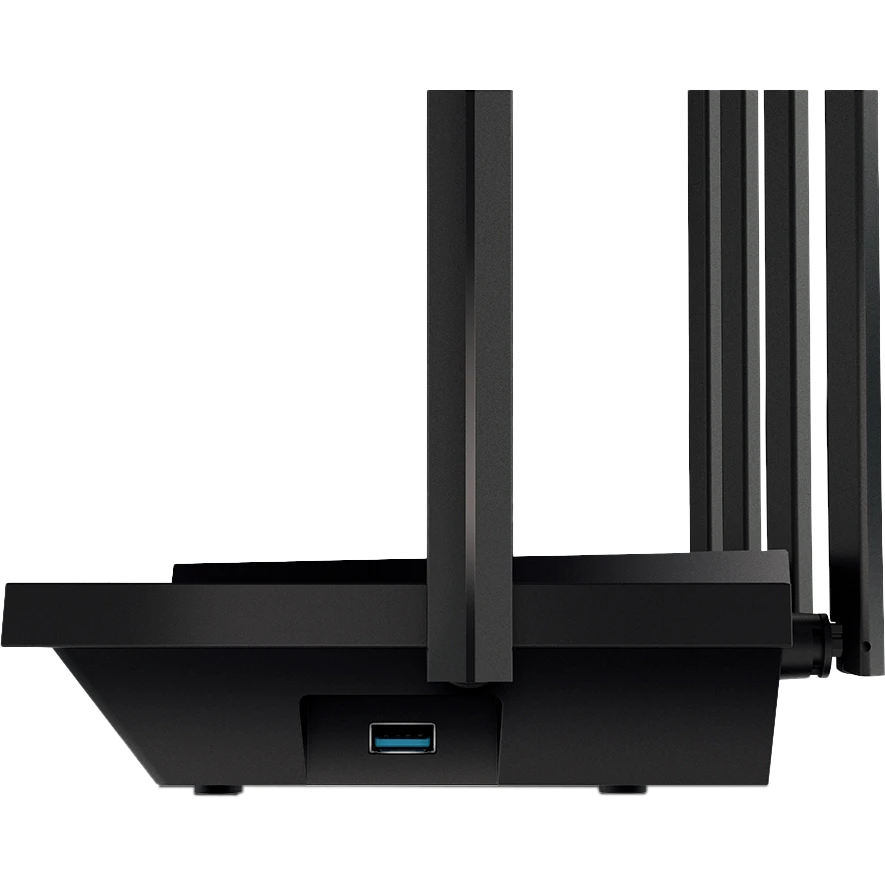

USB Support

1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

Buttons

Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button

Power

12 V = 2.5 A

SOFTWARE

Protocols

IPv4
IPv6

Service Kits

HomeShield
Learn More>

OneMesh™

OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>

Parental Controls

HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server

IPTV

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP

Address Reservation
DHCP Client List
Server

DDNS

TP-Link
NO-IP
DynDNS

Management

Tether App
Webpage

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }

WiFi Reception Sensitivity

2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm

PHYSICAL

Dimensions (W×D×H)

10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)
