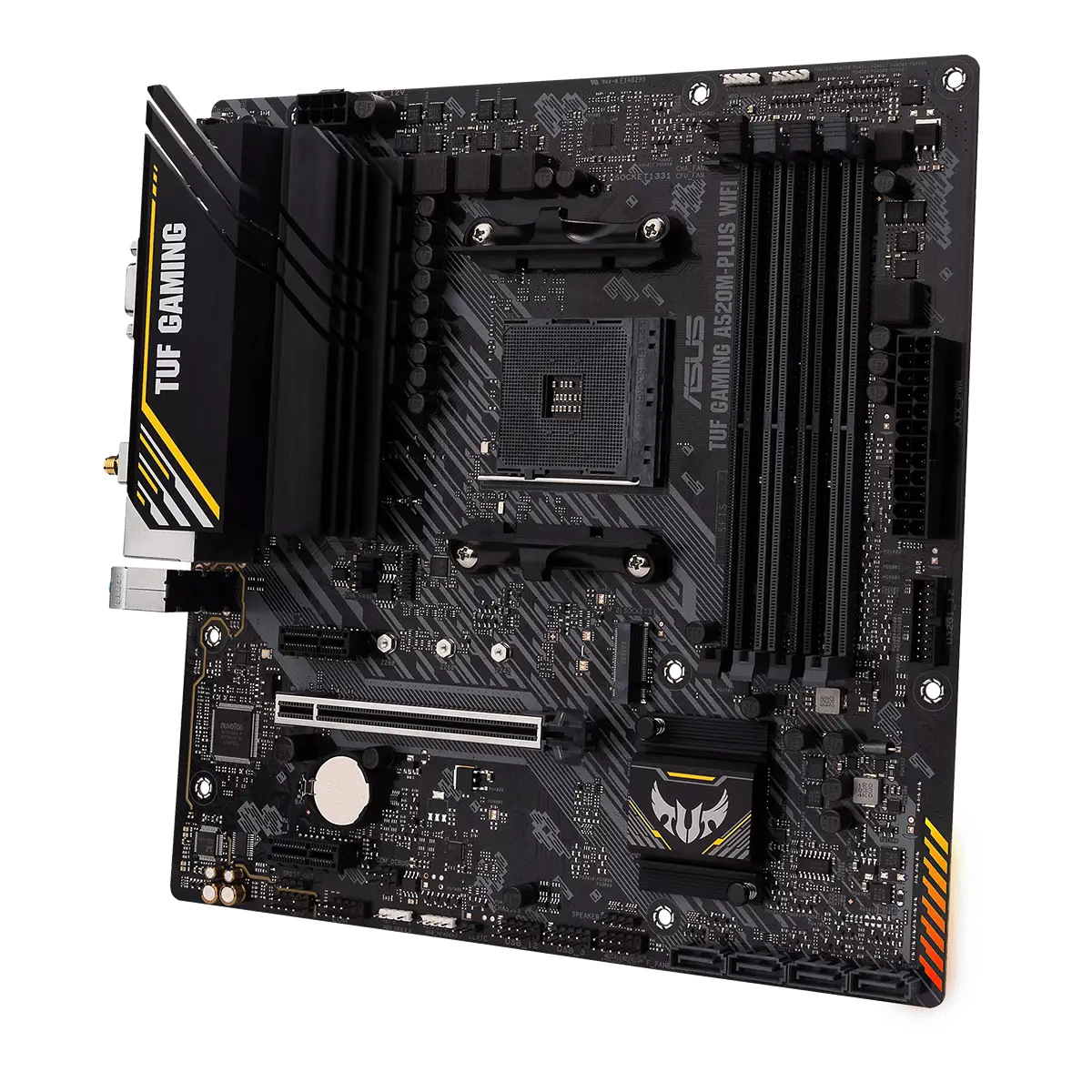

Tarjeta Madre Asus TUF GAMING A520M-PLUS WIFI

Especificaciones Tecnicas

Fabricante:

Asus

Modelo:

TUF GAMING A520M-PLUS WIFI

CPU

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

Chipset

A520

Memoria

4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*

Memory Channels

4DDR4 (Dual channel)

Max Memory Size

128GB

Gráficos

1 x D-Sub
1 x HDMI® port***
1 x DisplayPort 1.2
1 x HDMITM 2.1(4K@60Hz)
1 x D-Sub
*Las especificaciones gráficas pueden variar según el tipo de CPU.

Ranuras de expansión

1 x PCIe 3.0 x16 (x16 mode)
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots

Almacenamiento

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10

Ethernet

1 x Realtek 1Gb Ethernet
TUF LANGuard

Wireless y Bluetooth

Realtek Wi-Fi 5 8821CE
1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
Supports dual frequency band 2.4/5GHz
Supports channel bandwidth: HT20/HT40/HT80
Bluetooth v5.0

USB

Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio

ALC887/897
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
- Soporta: Detección de clavijas, Multi-streaming, Reasignación de clavijas en el panel frontal
- Soporta hasta 24-Bit/192 kHz playback"

Características de audio

- Blindaje de audio
- Condensadores de audio de primera calidad
- Capas de PCB dedicadas al audio
*Se requiere un chasis con un módulo de audio HD en el panel frontal para soportar la salida de audio 7.1 Surround Sound.

Puertos E/S traseros

4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub
1 x ASUS Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port

Puertos internos

Fan and cooling related

1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header
neous2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Funciones especiales de ASUS

ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM
- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button
- BIOS FlashBack™ LED

AURA Sync

- AURA RGB headers
- Addressable Gen 2 RGB headers

Software

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

WOL by PME, PXE

Accesorios

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield
1 x M.2 SSD screw package
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card
1 x User manual

Sistema operativo

Windows 10 64bit
Windows® 10 64-bit
